AI-200 · 2.2.2 · Develop AI solutions by using Azure data management services

Vector schema design

Model schemas and implement indexing strategies, including designing tables and choosing appropriate data types

Store chunk text, metadata, and a dimensioned together; choose vector, , or sparsevec to fit the model and storage needs.

Keep chunks and metadata together

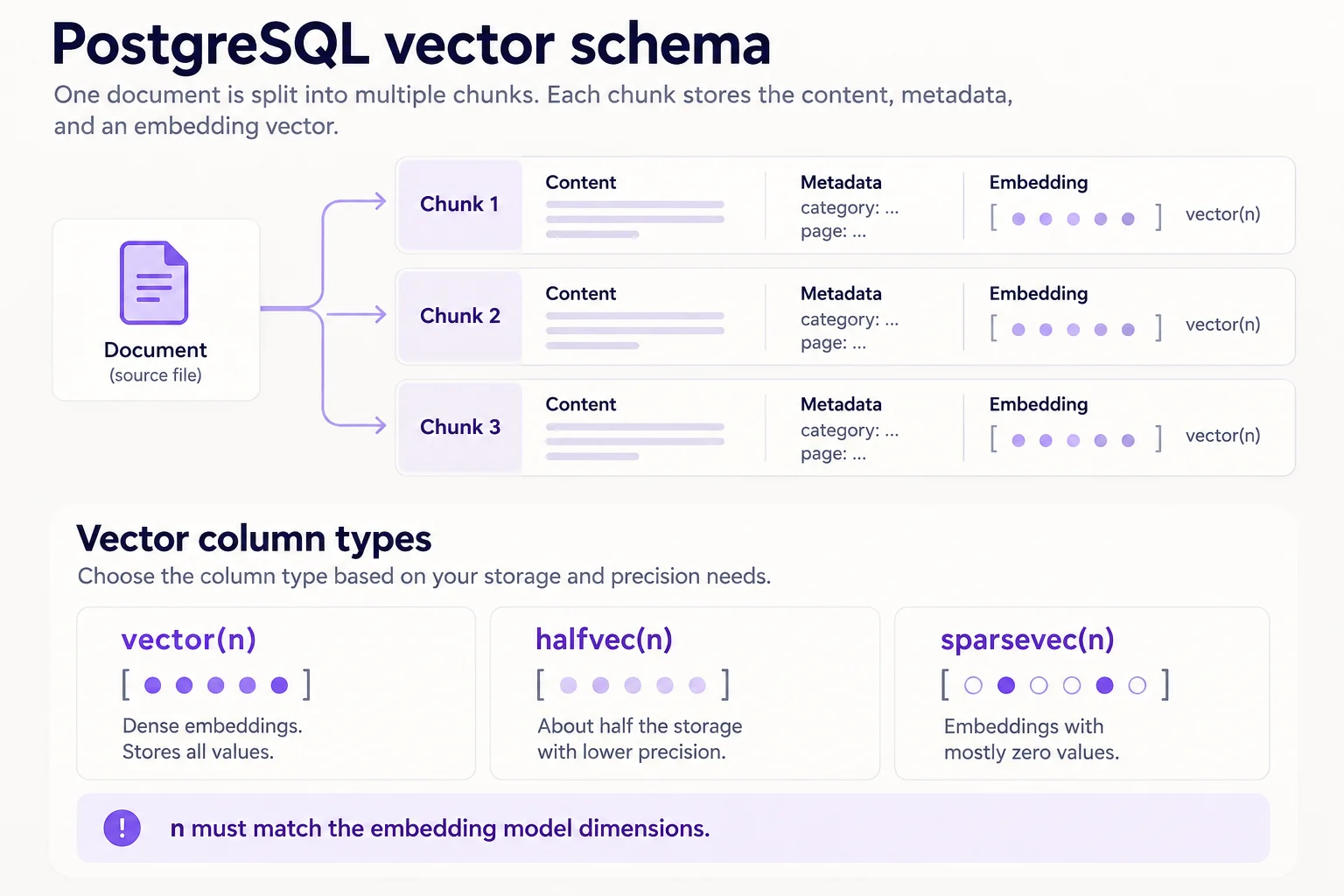

PostgreSQL vector schema showing one document split into chunks that each store content, metadata, and an embedding, plus vector, halfvec, and sparsevec column types.

A RAG-friendly schema keeps each chunk's text, filterable metadata and in the same row, linked back to the source document. Declare the embedding as vector(n) so PostgreSQL knows its dimensions.

CREATE TABLE doc_chunks (
    id bigserial PRIMARY KEY,
    doc_id integer REFERENCES docs (id) ON DELETE CASCADE,
    content text NOT NULL,
    embedding vector(1536)
);

The dimension count must match the embedding model. A different model usually needs a new column and a backfill.

Use halfvec when lower precision is acceptable in exchange for roughly half the storage, and sparsevec for embeddings whose values are mostly zero.

Key points

  • `vector(n)`: n must equal the model's number of values, or inserts fail
  • Indexing: needs declared dimensions; and allow at most 2,000
  • schema: documents table, chunks table, linked by a
  • Switch model: add a new column, backfill it, drop the old one

Click an underlined term for a one-line explanation, or see them all in the glossary .

Exam trap

A plain `vector` column without a dimension count is accepted but cannot get an or index later; declare `vector(n)` at creation.
